Experience the gold standard in audio recording.

The next generation of Apollo x16 is here — built for pro studios and serious music producers who need 16 channels of highest-resolution audio conversion and HEXA Core DSP processing for connecting your studio equipment and producing large sessions with UAD plug-ins from Neve, Manley, Avalon, SSL, Auto-Tune, and hundreds more. Connect your studio gear with 16 x 16 analog I/O via DB-25 connections with switchable +24 dBu headroom settings. Use onboard HEXA Core DSP to record and mix large sessions using UAD plug-ins in realtime. Create immersive audio mixes up to 9.1.6 for Dolby Atmos, Auro‑3D, Sony 360 Reality Audio, and others. Work faster with new UAD Console features including Auto-Gain, Plug-In Scenes, Monitor Controller, Immersive Audio, and more. Mix with confidence in any room or through headphones using Apollo Monitor Correction by Sonarworks®. Get included UAD plug-ins from Auto-Tune, Fairchild, Teletronix, and more with Essentials+ or Ultimate+ Editions.

Features:

• 18 x 20 Thunderbolt 3 audio interface with HEXA Core DSP plug-in processing

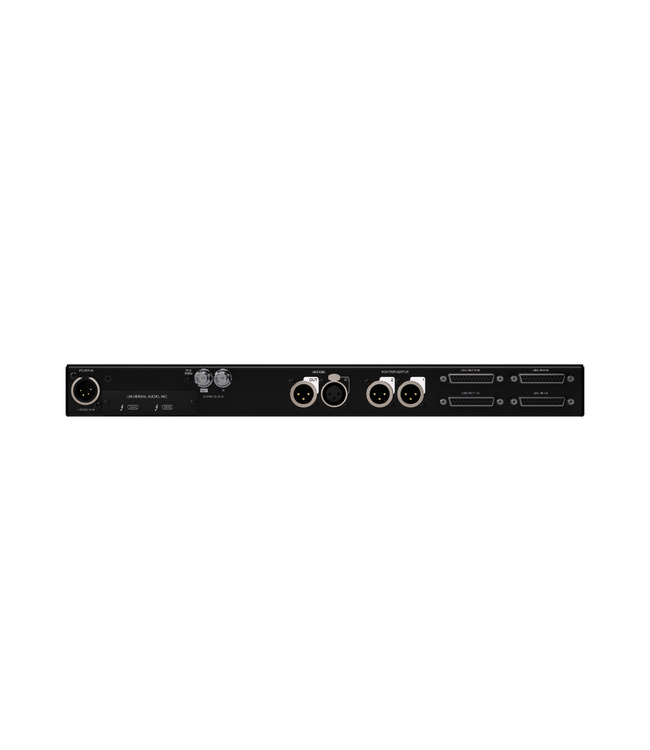

• Two DB-25 inputs (line 1-16), stereo AES I/O (XLR), word clock I/O (BNC)
• Two monitor outs (XLR), two DB-25 outputs (line 1-16 or ALT / 9.1.6 surround)
• Elite-class Apollo X Gen 2 converters with 24-bit / 192 kHz resolution featuring Dual-Crystal Clocking for ultra-low jitter at all sample rates
• Flagship D/A for critical monitoring and playback with 133 dB dynamic range and astonishingly low THD of -129 dB
• Calibrate your main monitor outputs (stereo or immersive) with Apollo Monitor Correction powered by Sonarworks®
• Fully-featured monitor controller with alternate speaker switching and integrated talkback for easy communication with talent
• ALT monitoring support in all monitor modes (2 x ALT mon for stereo, 1 x ALT mon for immersive)
• Updated UAD Console app featuring Plug-In Scenes, subwoofer integration with Bass Management, immersive audio support, and more
• Onboard DSP supports over 200 UAD plug-ins via VST, AU, and AAX 64 formats in all major DAWs
• Includes up to 100+ UAD plug-ins with Essentials+ or Ultimate+ Editions
• Compatible with LUNA, Logic Pro, Pro Tools, Cubase, Ableton Live, and more
• Expandable with Thunderbolt Apollo interfaces and Dante via Apollo x16D
• Free industry-leading technical support from knowledgeable audio engineers
